Box Cab Locomotive

2.5" or 3.75" Scale Box Cab Switching Locomotive
Electric or Gas/Hydraulic Powered for 7.25", 7.5" or 12" Gauge Track

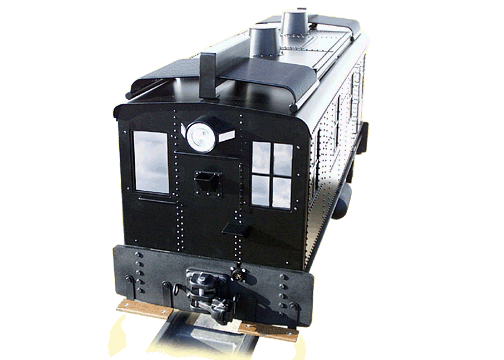

Early non-steam (oil/gasoline/diesel or pure electric) engines were often built using car body technology. This style locomotive is called a box cab. Our model recalls an Alco-GE-Ingersoll-Rand 300-hp switcher, one of the earliest successful box cabs.

Solid riveted cab
All steel construction
Axle-mounted, heavy duty industrial gear boxes
5/8 hp, continuous-duty, 4-brush 24Vdc motors
Solid-state programmable control and power modules
Options:
- Premium Sound System
- Control Stalk
- 9.5 hp electric start gas engine with hydro-static drive system
- Battery Charger
- Knuckle Couplers

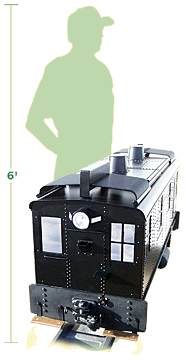

Box Cab Locomotive vs Man size comparison

Standard Features	BB
Number of 5/8 HP motors	2
Powered Axles	4
Power Module Rating	160 Amp
Battery Positions	2, 4, or 6
Length	68"
Width	20"
Height	25"
Approx. Wt. w/o Batteries	305 lbs.
Approx. Wt. w/ Batteries	380-530 lbs.
	Also available as a gas/hydraulic unit powered by a Honda 5.5 hp electric-start engine, hydrostatic pump and two hydraulic motors.
