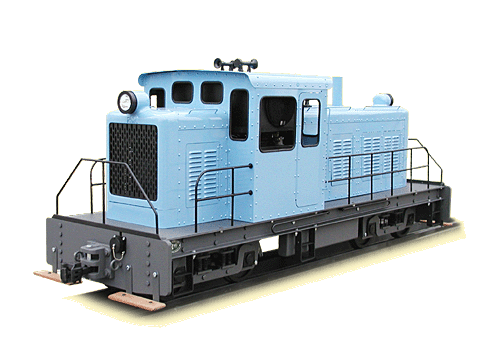

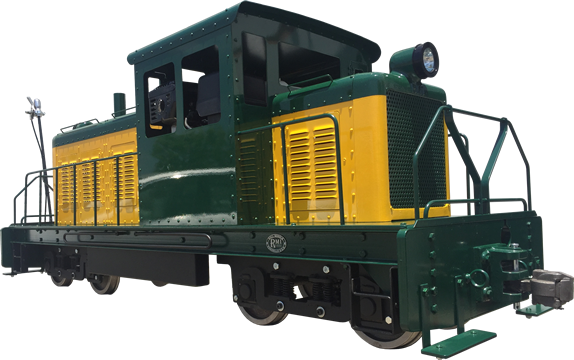

Road Switcher Locomotive

2.5" Scale Narrow Gauge Road Switching Locomotive
Electric or Gas/Hydraulic Drive

Road Switcher Locomotive
When the yard switching is done and it's time to hit the main line, move up to RMI's latest locomotive, the long range Road Switcher. Featuring a high hood line with plenty of extra room for batteries or a 5.5 hp Honda gas engine, this unit is ready for long runs with heavy loads.
Locomotive Features

Road Switcher Locomotive
  • Solid riveted cab
  • All steel construction
  • Axle-mounted, heavy duty industrial gear boxes
  • 5/8 hp, continuous-duty, 4-brush 24Vdc motors
  • Solid-state programmable control and power modules
  • Options:
Locomotive Specifications

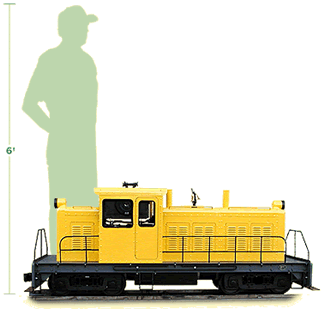

Locomotive v Man Size Comparison
Standard Features BB
Number of 5/8 HP motors 2
Powered Axles 4
Power Module Rating 160 Amp
Battery Positions 2, 4, or 6
Length 68"
Width 20"
Height 25"
Approx. Wt. w/o Batteries 305 lbs.
Approx. Wt. w/ Batteries 380-530 lbs.
  Also available as a gas/hydraulic unit powered by a Honda 5.5 hp electric-start engine, hydrostatic pump and two hydraulic motors.>
